Performance characteristics

1, the material trough using high quality imported stainless steel, fully meet the export food hygiene standards.

2, condensate water from the steam trap automatic discharge, energy saving effect is good.

3, the wind turbine using Danish technology, wind 5800-11000m3/h, wind pressure 770-440pa (adjustable), power 4kw.

4, the radiator is composed of 4 rows of 76 seamless pipe composite aluminum fin, the installation size is 880 * 880mm

5, manual throttle, adjusting the air volume

Structure characteristics

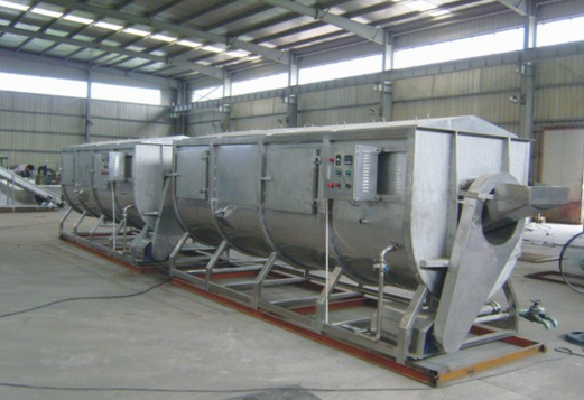

GTJ vegetable drying and dewatering machine is composed of the following parts:

1, material trough; 2, heat exchanger; 3, round the side; 4, trap; 5, electric control box;

6, centrifugal fan, motor, 8; 7; shield; 9, damper; 10, outlet;
